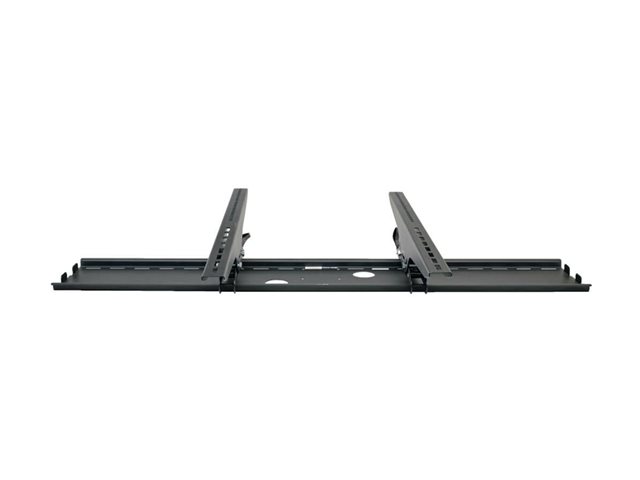

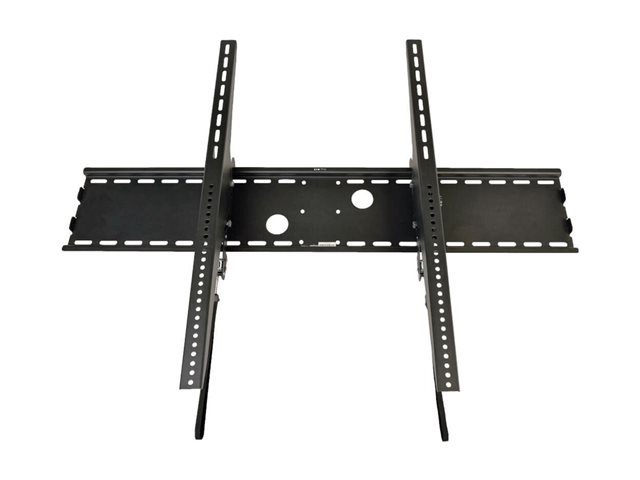

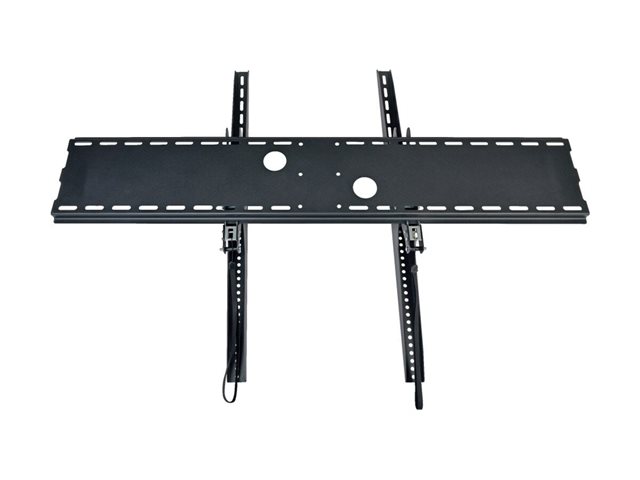

Tripp Lite Display TV LCD Wall Monitor Mount Tilt 60" to 100" TVs / EA / Flat-Screens - Bracket - Low Profile Mount - for LCD display - steel - black - screen size: 60"-100" - wall-mountable
Manufacturer: Tripp Lite
Item Inso: 3682252
Sku: DWT60100XX
The VESA-compliant DWT60100XX tilt wall mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 60 to 100 inches. A -15° to +15° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
Product Description | Tripp Lite Display TV LCD Wall Monitor Mount Tilt 60" to 100" TVs / EA / Flat-Screens - bracket - Low Profile Mount - for LCD display - black |
Product Type | Bracket (Low Profile Mount) - wall-mountable |
Dimensions (WxDxH) | 114 cm x 113 cm x 13 cm |
Tilt | -15° to 15° |
Adjustments | Tilt |
Weight | 7.87 kg |
Recommended Use | LCD display |
Recommended Display Size | 60"-100" |
VESA Mounting Interface | 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 800 x 600 mm, 300 x 300 mm, 1000 x 600 mm, 1000 x 800 mm, 1000 x 400 mm |
Max Load Weight | 158.8 kg |
Material | Steel |
Color | Black |
Package Content | 4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x washers, 8 x spacers (small), 4 x spacers (big), 6 x concrete anchors, 2 x adapter brackets, mounting template, wall plate, 2 x knobs |
Manufacturer Warranty | 5-year warranty |
Items included in the box :
Wall plate |
Mounting template |
(2) Adapter brackets |
(2) Tilt adjusting knobs |
(4) M5 x 14 screws |
(4) M6 x 14 screws |
(4) M6 x 30 screws |
(4) M8 x 20 screws |
(4) M8 x 30 screws |
(4) Washers |
(8) Small spacers |
(4) Big spacers |
(6) Anchor bolts |
(6) Concrete anchors |
(6) D6 washers |
Owner's manual |
