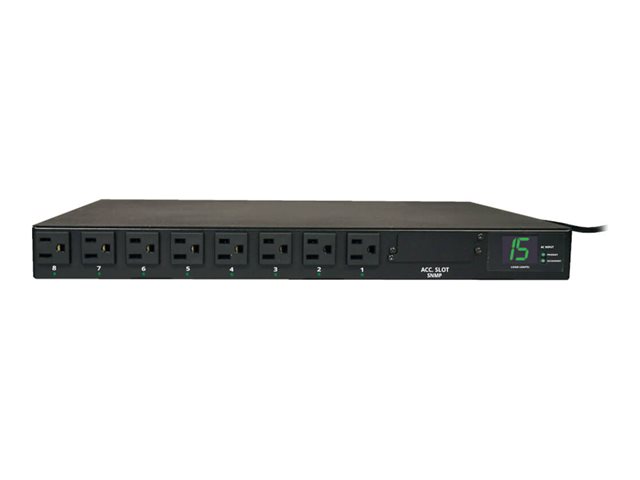

Eaton Tripp Lite Series PDU Metered ATS 120V 15A 5-15R 8 Outlet 2 5-15P Horizontal 1URM - Horizontal rackmount - power distribution unit (rack-mountable) - 15 A - AC 120 V - 1.4 kW - 1800 VA - input: NEMA 5-15 - output connectors: 8 (NEMA 5-15/20) - 1U - black
Manufacturer: Eaton
Item Inso: 406290
Sku: PDUMH15AT
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
Product Description | Eaton Tripp Lite Series PDU Metered ATS 120V 15A 5-15R 8 Outlet 2 5-15P Horizontal 1URM - horizontal rackmount - power distribution unit - 1.4 kW - 1800 VA |
Device Type | Power distribution unit - rack-mountable |
Rack Size | 1U |
Weight | 5 kg |
Input Voltage | AC 120 V |
Output Voltage | AC 120 V |
Power Capacity | 1.4 kW / 1800 VA |
Input Connectors | 2 x power NEMA 5-15 |
Output connectors | 8 x power NEMA 5-15/20 |
Color | Black |
Dimensions (WxDxH) | 44.4 cm x 36.8 cm x 4.4 cm |
Manufacturer Warranty | 2-year warranty |
Items included in the box :

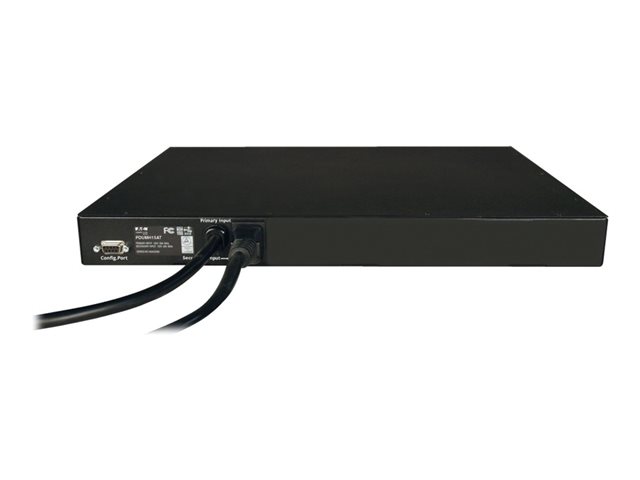

ATS / Metered PDU with attached 5-15P primary input cord |
Detachable C13 to NEMA 5-15P 12 ft / 3.6m secondary input cord |
1U rackmount installation brackets |
User manual with warranty information |
