Description

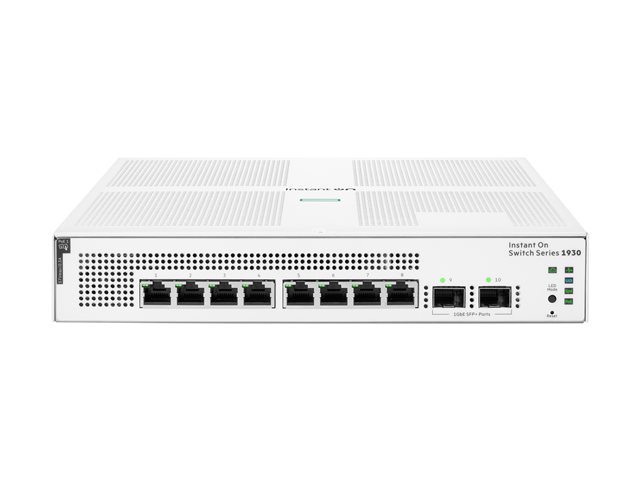

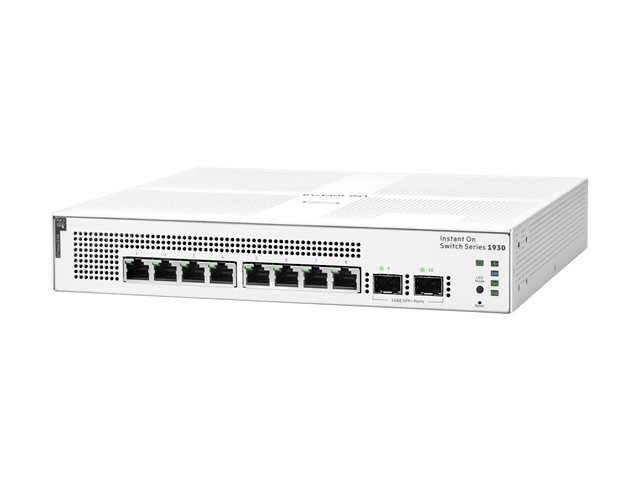

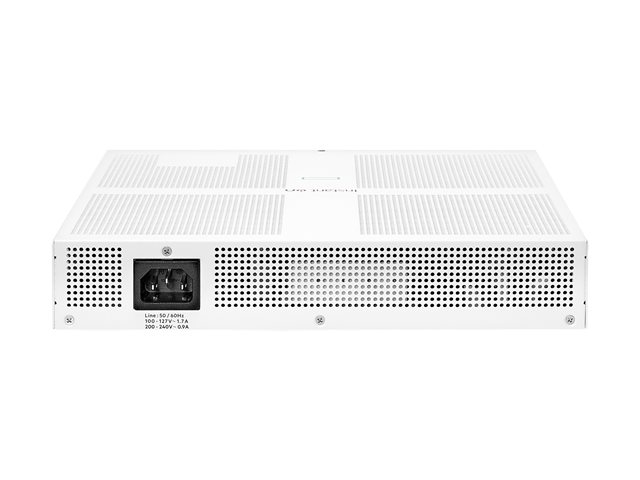

HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch - Switch - L3 - managed - 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP - rack-mountable - PoE (124 W)
Manufacturer: Hewlett Packard Enterprise
Item Inso: 5722682
Sku: JL681A#ABA
The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 10 ports - managed - rack-mountable |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 124 W |
| Performance | Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs |
| Capacity | Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 25.4 cm x 25.4 cm x 4.39 cm |
| Weight | 1.16 kg |
| Localization | English / United States |
| Manufacturer Warranty | Limited lifetime warranty |
