Description

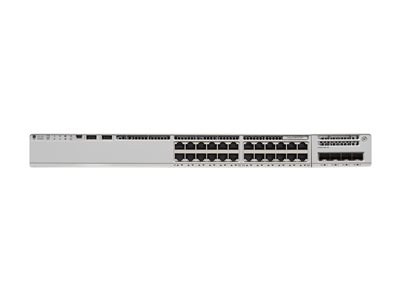

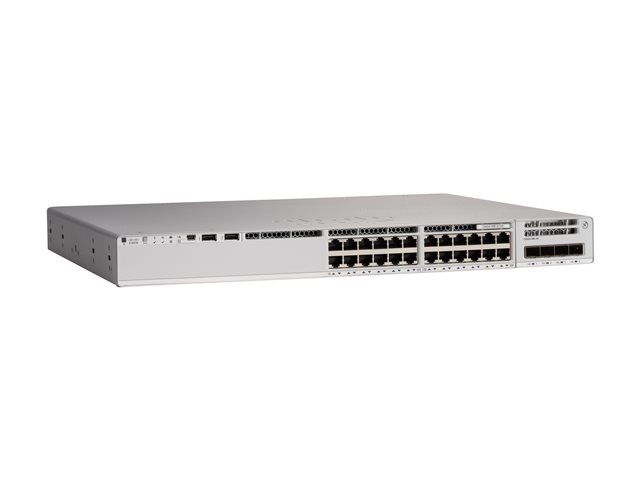

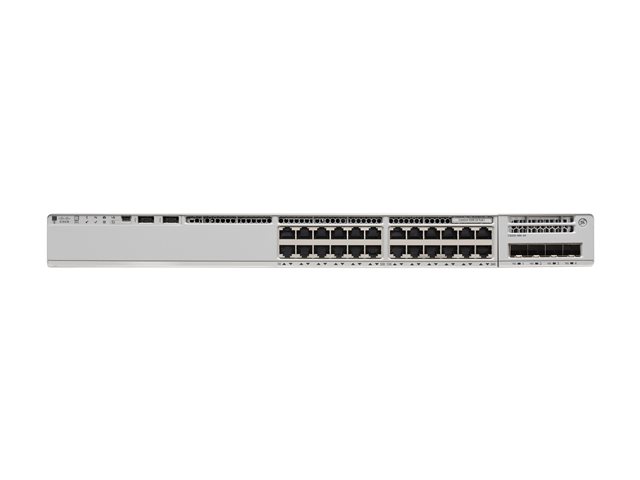

Cisco Catalyst 9200 - Enhanced VRF, Network Advantage - switch - L3 - smart - 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+
Manufacturer: Cisco
Item Inso: 5765991
Sku: C9200-24PB-A
The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | Cisco Catalyst 9200 - enhanced VRF, Network Advantage - switch - 24 ports - smart - rack-mountable |
| Device Type | Switch - 24 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps |
| Capacity | Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ ACL scale entries: 1600 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol | NETCONF, RESTCONF |
| Features | Cisco StackWise Technology, VRF, FNF, MACsec support, built-in ASIC, CoPP, VXLAN, LISP, Blue Beacon LED, SGT caching, EEM, PIM, FHS, PVLAN support, DNA support, Superior QoS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 4.4 cm x 44.5 cm x 35 cm |
| Weight | 5.5 kg |
| Manufacturer Warranty | Limited lifetime warranty |
As those documents are supplied by the manufacturer, we have no control over their language.
Items included in the box :
| Switch with default primary power supply, AC power cord, rack-mount kit |
