APC Metered Rack PDU - Power distribution strip (rack-mountable) - AC 200/208/230 V - Ethernet, RS-232
Description
APC Metered Rack PDU - Power distribution strip (rack-mountable) - AC 200/208/230 V - Ethernet, RS-232 - input: NEMA L6-20 - output connectors: 20 (IEC 60320 C13, IEC 60320 C19) - 0U - black - for P/N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT6KXLTW, SRT8KXLJ
Manufacturer: APC
Item Inso: 1630778
Sku: AP8858NA3
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | APC Metered Rack PDU - power distribution strip |
| Device Type | Power distribution strip - rack-mountable |
| Rack Size | 0U |
| Weight | 2.9 kg |
| Input Voltage | AC 200/208/230 V |
| Output Voltage | AC 208 V |
| Input Connectors | Power NEMA L6-20 |
| Output connectors | 18 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 |
| Networking | Ethernet, RS-232 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Color | Black |
| Dimensions (WxDxH) | 5.6 cm x 4.4 cm x 90.2 cm |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: AR3103SP, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SRT1000RMXLI, SRT10KXLTW, SRT10RMXLIX806, SRT3000XLTW, SRT5KRMXLW-TW, SRT6KXLTUS, SRT6KXLTW, SRT8KXLJ |
As those documents are supplied by the manufacturer, we have no control over their language.
Items included in the box :
| Installation guide |

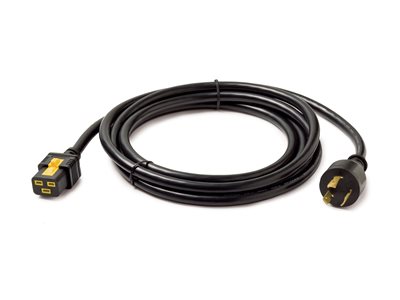

| Locking input power cord |
| Rack mounting brackets |
| Safety guide |
| Serial configuration cable |
