Tripp Lite 12U Rack Enclosure Server Cabinet Doors & Sides 300lb Capacity - Rack cabinet - black - 12U - 19"
Manufacturer: Eaton
Item Inso: 2429681
Sku: SR12UB

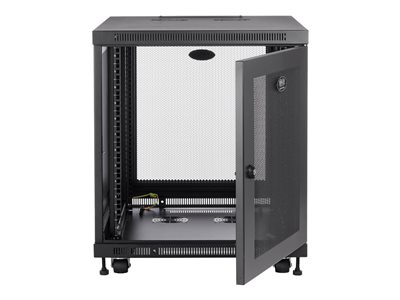

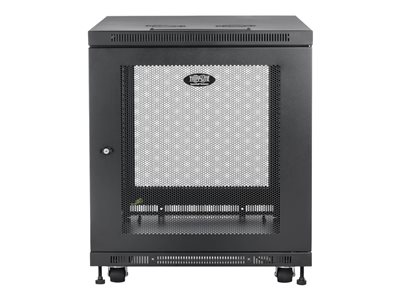

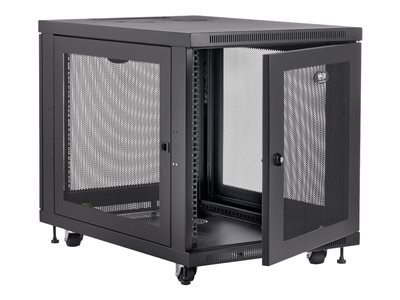

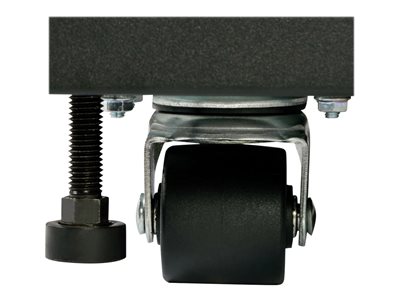

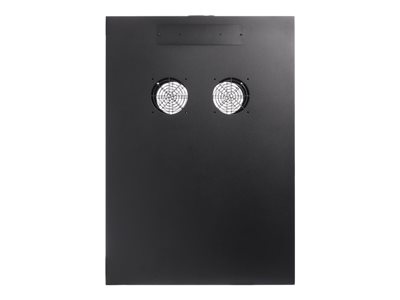

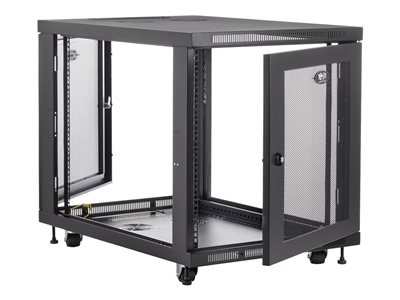

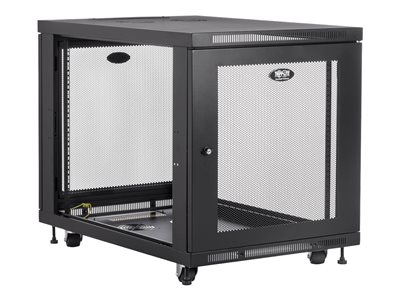

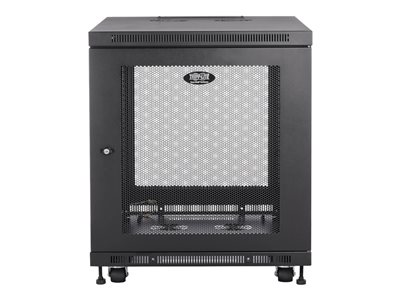

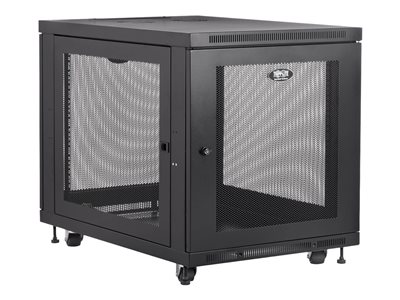

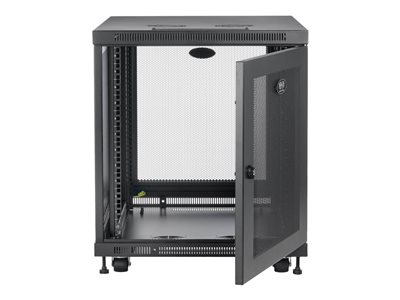

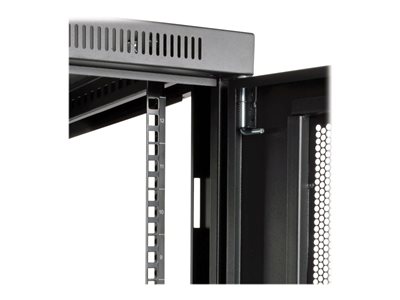

Tripp Lite’s SmartRack 12U Mid-Depth Rack Enclosure Cabinet is designed to simplify rack equipment installations and rack equipment maintenance. Compatible with all standard 19-inch rack equipment, it features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches, ideal for standard server installation. The rails are capable of supporting up to 453 kgs (1000 lbs)of equipment. The top and bottom panels are provided with ports for cable routing, and are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. The panels also support installation of standard user-supplied case fans (Tripp Lite SRFANWM). With a locking reversible front/rear doors and locking removable side panels, the SR12UB provides for the safe, secure installation of all equipment. To simplify deployment, the SR12UB comes with an accessory caster kit so it can easily be maneuvered into the desired location, and then secured in place by adjusting the unit’s levelers. It ships fully assembled for quick installation.
Product Description | Tripp Lite 12U Rack Enclosure Server Cabinet Doors & Sides 300lb Capacity - rack - 12U |
Product Type | Rack |
Rack Type | Cabinet |
Color | Black |
Rack Size | 19" |
Height (Rack Units) | 12U |
Dimensions (WxDxH) | 60 cm x 85.1 cm x 63.5 cm |
Weight | 48 kg |
Features | Wheels, lockable front door, adjustable depth, lockable side panel, removable side panel |
Manufacturer Warranty | 5-year warranty |

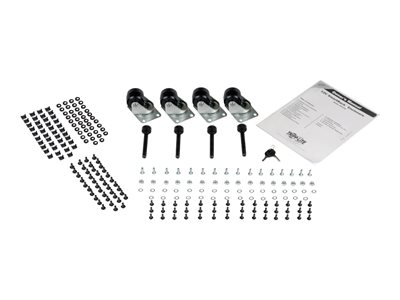

Items included in the box :
SmartRack 12U Mid-Depth Rack Enclosure Cabinet |
(36) M6 screws |
(36) M6 cage nuts |
(36) M6 washers |
SRACASTER kit (includes 4 casters) |
(2) keys |
Owner's Manual |
