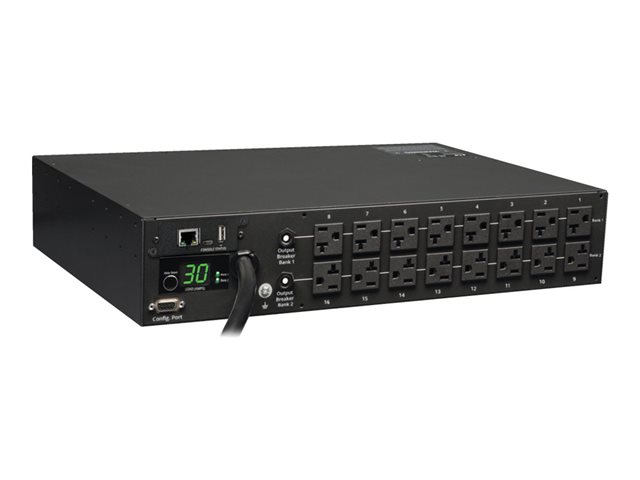

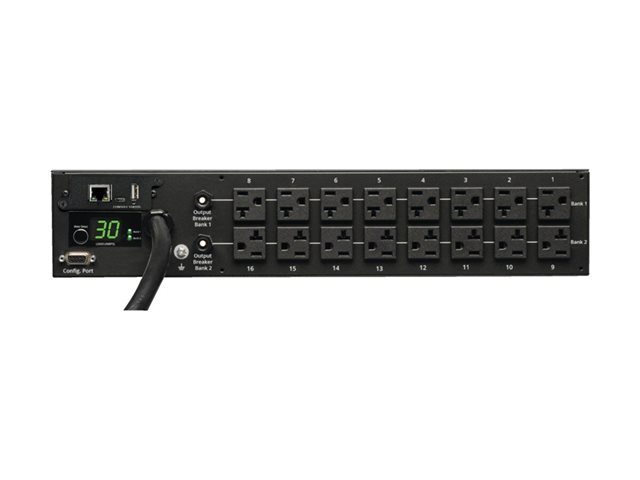

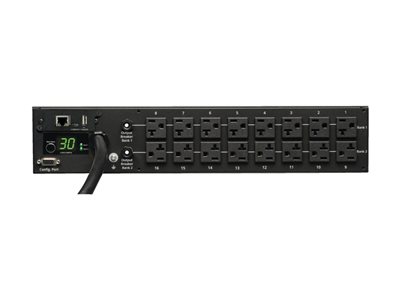

Eaton 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 2U Rack-Mount, TAA - Horizontal rackmount - power distribution unit (rack-mountable) - 30 A - AC 120 V - 2.9 kW - Ethernet 10/100 - input: NEMA L5-30 - output connectors: 16 - 2U
Manufacturer: Eaton
Item Inso: 3147725
Sku: PDUMNH30
Tripp Lite's PDUMNH30 distributes and monitors single-phase 120V power to connected rack equipment in data centers, network closets, server rooms, computer rooms and other applications requiring network-grade power. Its built-in network interface allows real-time remote monitoring of voltage, frequency and load levels to prevent overloads that cause expensive downtime. It features 16 NEMA 5-15/20R outlets and a 10-foot (3-meter) power cord with NEMA L5-30P plug, which connects the PDU to a compatible AC power source, generator or protected UPS system.
Product Description | Eaton 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 2U Rack-Mount, TAA - horizontal rackmount - power distribution unit - 2.9 kW |
Device Type | Power distribution unit - rack-mountable |
Rack Size | 2U |
Weight | 6.3 kg |
Input Voltage | AC 120 V |
Output Voltage | AC 120 V |
Power Capacity | 2.9 kW |
Input Connectors | Power NEMA L5-30 |
Output connectors | 16 x power NEMA 5-15/20 |
Networking | Ethernet 10/100 |
Remote Management Protocol | SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS |
Included Accessories | Cable retention brackets |
Dimensions (WxDxH) | 44.5 cm x 31.8 cm x 8.9 cm |
Manufacturer Warranty | 2-year warranty |

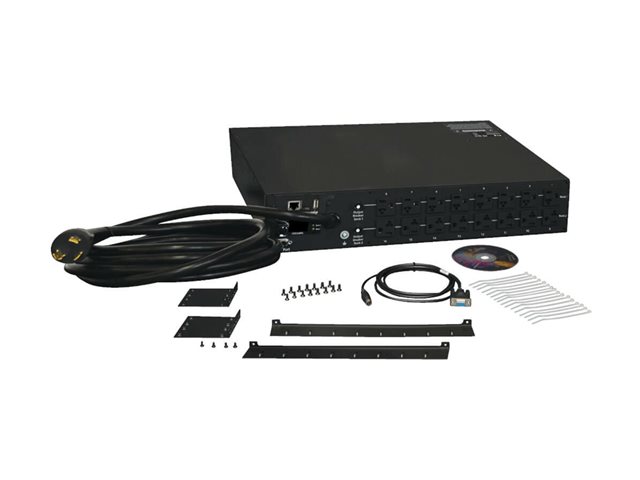

Items included in the box :
Rackmount PDU |
Plug retention plates |
Rack mounting brackets |
Owner's manual |
