Description

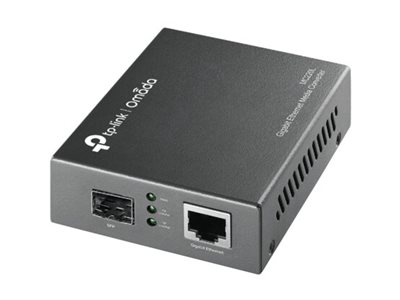

TP-Link MC220L - Fiber media converter - GigE - 1000Base-LX, 1000Base-SX, 1000Base-LH - RJ-45 / SFP (mini-GBIC) - up to 10 km - 850 nm / 1310 nm - for P/N: TL-MC1400
Manufacturer: TP-Link
Item Inso: 3329763
Sku: MC220L
The MC220L is a media converter designed to convert 1000Base-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | TP-Link MC220L - fiber media converter - GigE |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | External |
| Cabling Type | 1000Base-LX, 1000Base-SX, 1000Base-LH |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm / 1310 nm |
| Data Link Protocol | GigE |
| Max Transfer Distance | 10 km |
| Dimensions (WxDxH) | 9.5 cm x 7.3 cm x 2.7 cm |
| Designed For | P/N: TL-MC1400 |
