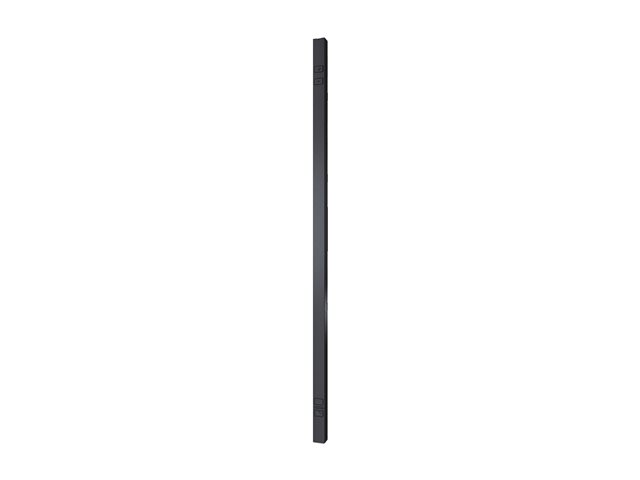

APC Metered Rack PDU - Power distribution unit (rack-mountable) - AC 400 V - 3-phase - Ethernet, RS-232, USB - input: IEC 60309 32A - output connectors: 42 - 0U - black - for P/N: AR3103SP, AR3106SP, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLW-TW
Manufacturer: APC
Item Inso: 3562442
Sku: AP8886

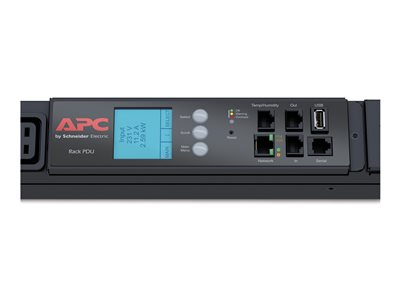

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers.
Product Description | APC Metered Rack PDU - power distribution unit |
Device Type | Power distribution unit - rack-mountable |
Rack Size | 0U |
Weight | 8.72 kg |
Input Wiring | 3-phase |
Input Voltage | AC 400 V |
Output Voltage | 230 V |

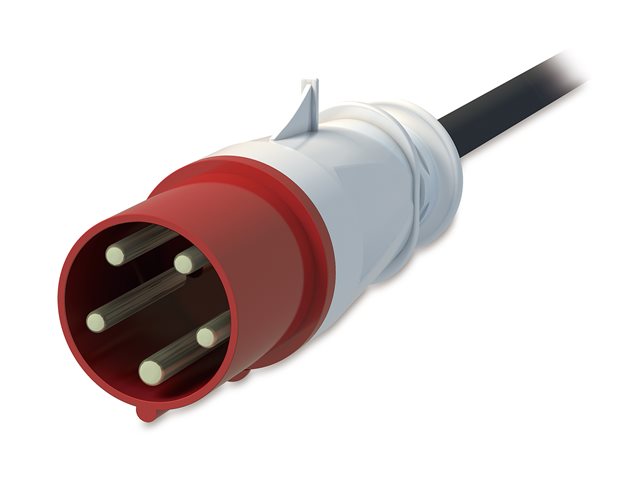

Input Connectors | 1 x power IEC 60309 32A |
Output connectors | 30 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19 |
Networking | Ethernet, RS-232, USB |
Remote Management Protocol | SNMP, Telnet, HTTP, SSH |
Color | Black |
Dimensions (WxDxH) | 5.6 cm x 5.1 cm x 182.9 cm |
Manufacturer Warranty | 2-year warranty |
Designed For | P/N: AR3103SP, AR3106SP, AR3357X674, SMC1000I-2UC, SMC1000IC, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200RMLVUS, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750US, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLTUS, SRT5KRMXLW-TW |
Items included in the box :
Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable |
