Eaton Tripp Lite Series Display TV LCD Wall Monitor Mount Fixed 45" to 85" TVs / EA / Flat-Screens - Bracket - Low Profile Mount - for LCD display - steel - black - screen size: 45"-85" - wall-mountable
Manufacturer: Tripplite
Item Inso: 3663894
Sku: DWF4585X

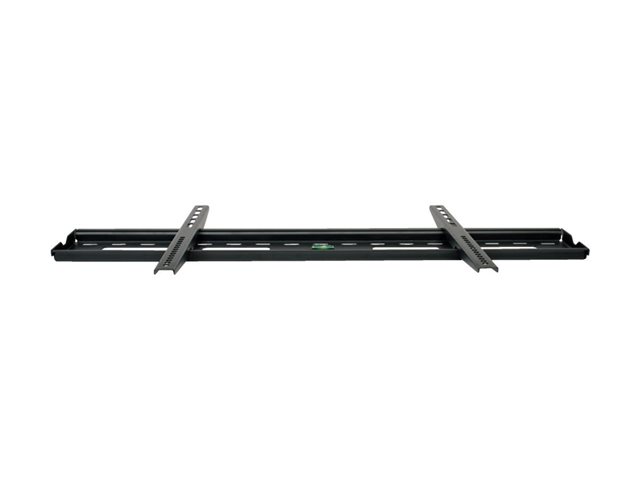

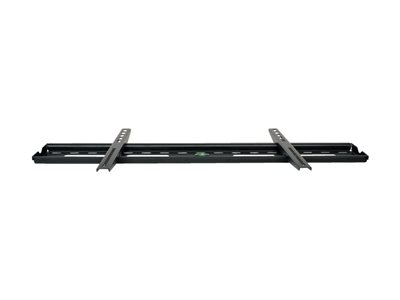

The VESA-compliant DWF4585X Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 91 kg (200 lbs.). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
Product Description | Eaton Tripp Lite Series Display TV LCD Wall Monitor Mount Fixed 45" to 85" TVs / EA / Flat-Screens bracket - Low Profile Mount - for LCD display - black |
Product Type | Bracket (Low Profile Mount) - wall-mountable |
Integrated Devices | Water level |
Dimensions (WxDxH) | 84.84 cm x 3.61 cm x 43.99 cm |
Weight | 2.6 kg |
Recommended Use | LCD display |
Recommended Display Size | 45"-85" |
VESA Mounting Interface | 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 300 x 300 mm |
Max Load Weight | 90.72 kg |
Material | Steel |
Color | Black |
Package Content | 4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x washers, 8 x spacers (small), 4 x spacers (big), 6 x concrete anchors, 2 x adapter brackets, wall plate |
Manufacturer Warranty | 5-year warranty |
Items included in the box :
Wall plate |
(2) Adapter brackets |
(4) M5 x 14 screws |
(4) M6 x 14 screws |
(4) M6 x 30 screws |
(4) M8 x 20 screws |
(4) M8 x 30 screws |
(4) Washers |
(8) Small spacers |
(4) Big spacers |
(6) Anchor bolts |
(6) Concrete anchors |
(6) D6 washers |
Owner's manual |
