StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter - 1394 FW PCIe FireWire 800 / 400 Card (PEX1394B3)
Description
StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter - 1394 FW PCIe FireWire 800 / 400 Card (PEX1394B3) - FireWire adapter - PCIe - FireWire 800 - 2 ports + 1 x FireWire - for P/N: BNDTB10GI, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142
Manufacturer: StarTech.com
Item Inso: 422812
Sku: PEX1394B3
Have a need for speed? Get a PCI Express FireWire 800 (1394b) card for the same price as 1394a. The PEX1394B3 is built with a native PCI Express chipset and does not use a PCI Express bridge chip resulting in faster, reliable, and cost effective performance. With an unrivaled 800 Mbps data transfer capability, the two IEEE 1394b ports provide highly efficient, reliable communication. The card also provides a 400 Mbits/sec IEEE 1394a port for your older FireWire peripherals.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter - 1394 FW PCIe FireWire 800 / 400 Card (PEX1394B3) - FireWire adapter - PCIe - 2 ports |
| Device Type | FireWire adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x1 |
| Bus Voltage | 3.3 V |
| Dimensions (WxDxH) | 1.8 cm x 8.5 cm x 12 cm |
| Weight | 48 g |
| Ports Qty | 2 ports |
| Auxiliary Ports | 1 x IEEE 1394 (FireWire) |
| Data Link Protocol | FireWire 800 |
| Data Transfer Rate | 800 Mbps |
| System Requirements | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Linux 3.5.x or later LTS versions only, Apple macOS 13.0 |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16 |
As those documents are supplied by the manufacturer, we have no control over their language.

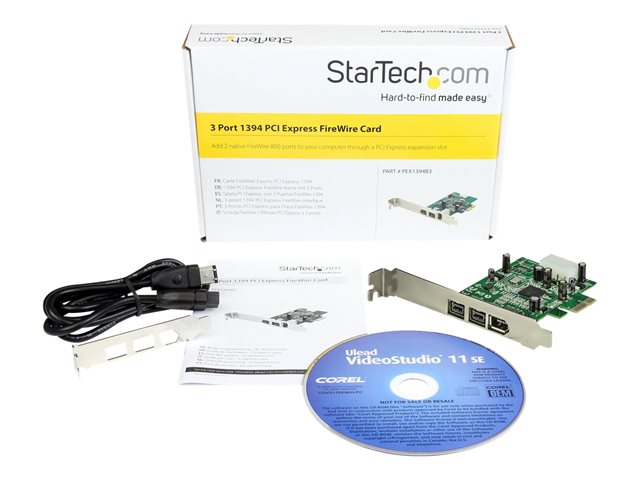

Items included in the box :
| 1 PCI Express FireWire Card |
| 1 FireWire cable |
| 1 Low Profile Bracket |
| 1 Software CD |
| 1 Instruction Manual |
