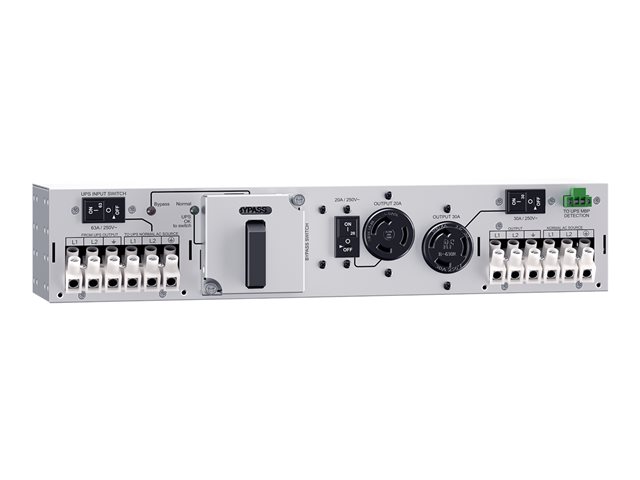

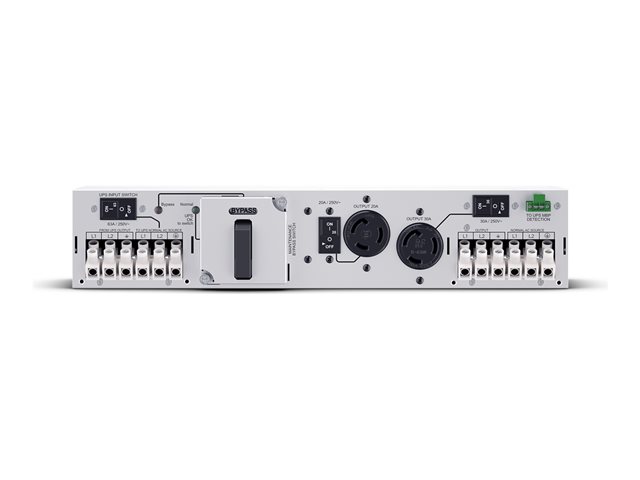

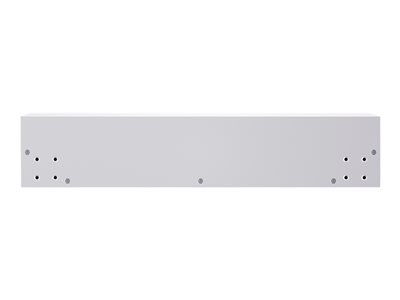

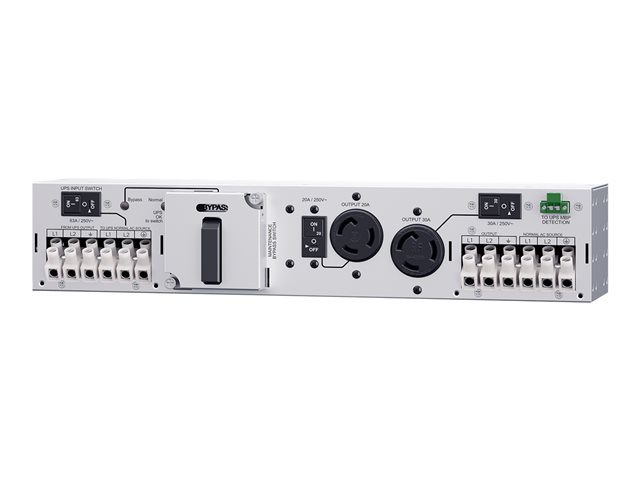

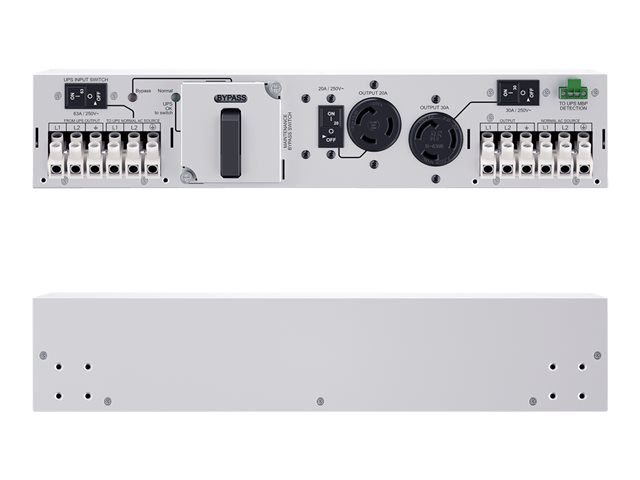

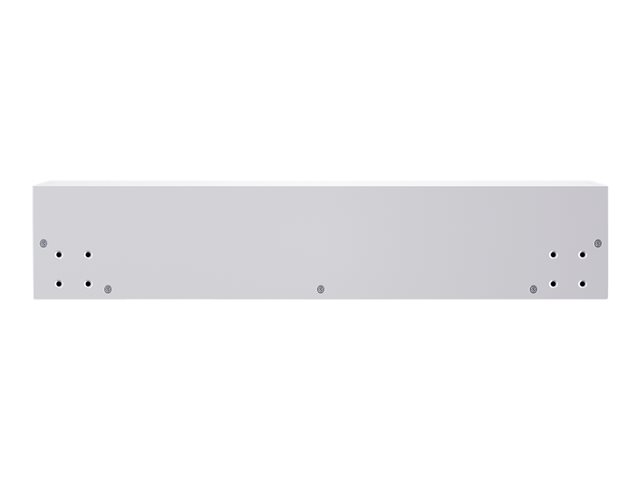

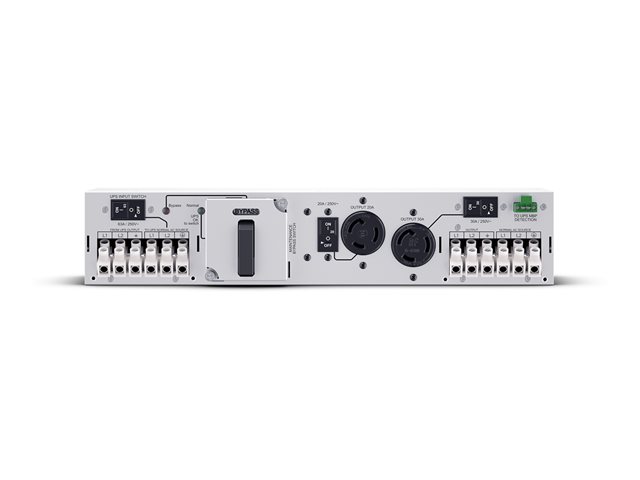

CyberPower Maintenance Bypass PDU MBP63A2


CyberPower Maintenance Bypass PDU MBP63A2 - Power distribution unit (rack-mountable / external) - AC 200-240 V - input: terminal block - output connectors: 3 (NEMA L6-30, NEMA L6-20, terminal block) - 2U - 1 m

Manufacturer: CyberPower
Item Inso: 5678834
Sku: MBP63A2

Designed for datacenters and other electrically demanding applications, the CyberPower MBP63A2 Maintenance Bypass Power Distribution Unit (MBP PDU), allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS. The MBP63A2 provides 208V nominal output to (1) NEMA L6-20R, (1) NEMA L6-30R and (1) Hardwire Terminal Block receptacle.Depending on UPS model, either a 3.3-foot AC cord or hardwire terminal block connects to the output power of the UPS. The UPS draws input power from the MBP63A2 separate from the outlets or terminal block for connected devices. When the switch on the front of the MBP63A2 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.Rugged, industrial-grade metal housing protects the MBP63A2. With a 2U form factor, this PDU can be mounted horizontally or vertically in a standard server rack, on a wall or in a tower configuration. The MBP63A2 is UL and RoHS compliant.

As this text is supplied by the manufacturer, we have no control over its language.

Product DescriptionCyberPower Maintenance Bypass PDU MBP63A2 - power distribution unit
Device TypePower distribution unit - rack-mountable / external
Cord Length1 m
Rack Size2U
Weight4 kg
Input VoltageAC 200-240 V
Output VoltageAC 208 V
Input Connectors3 x terminal block
Output connectors1 x power NEMA L6-20 ¦ 1 x power NEMA L6-30 ¦ 1 x terminal block
Dimensions (WxDxH)43.3 cm x 12.5 cm x 8.65 cm
Manufacturer Warranty3-year warranty
