- Tripp Lite PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM (PDUMH20HV)
Delivery
Warranty
Description
Tripp Lite PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM - Horizontal rackmount - power distribution unit (rack-mountable) - 20 A - AC 200/208/230/240 V - 3.8 kW - input: IEC 60320 C20 - output connectors: 10 - 1U - 19"
Manufacturer: Tripp Lite
Item Inso: 3132895
Sku: PDUMH20HV

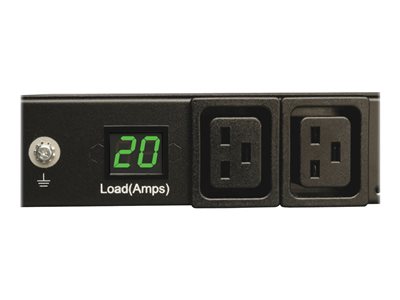

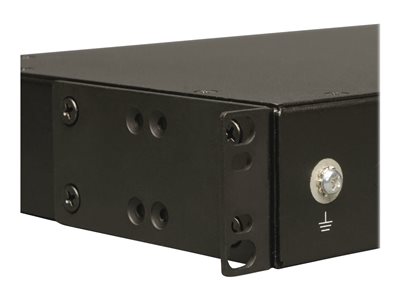

Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | Tripp Lite PDU Metered 200V - 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM - horizontal rackmount - power distribution unit - 3.8 kW |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 19" - 1U |
| Weight | 3.1 kg |
| Input Voltage | AC 200/208/230/240 V |
| Output Voltage | AC 200/208/220/230/240 V |
| Power Capacity | 3.8 kW |
| Input Connectors | 1 x power IEC 60320 C20 |
| Output connectors | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 |

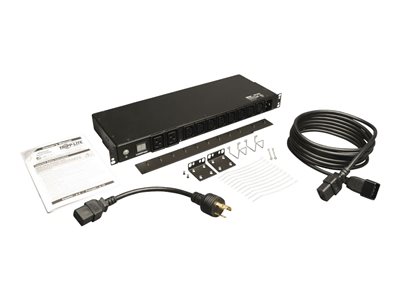

| Included Accessories | Cable retention brackets |
| Dimensions (WxDxH) | 44.4 cm x 16.5 cm x 2.87 cm |
| Manufacturer Warranty | 2-year warranty |
