Description

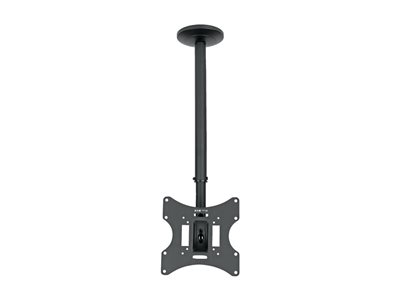

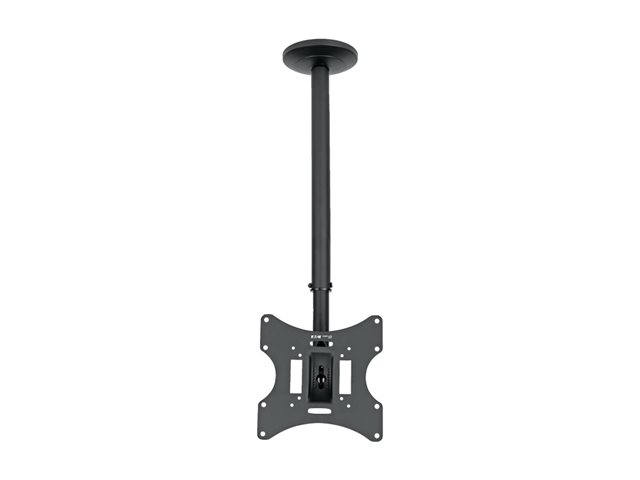

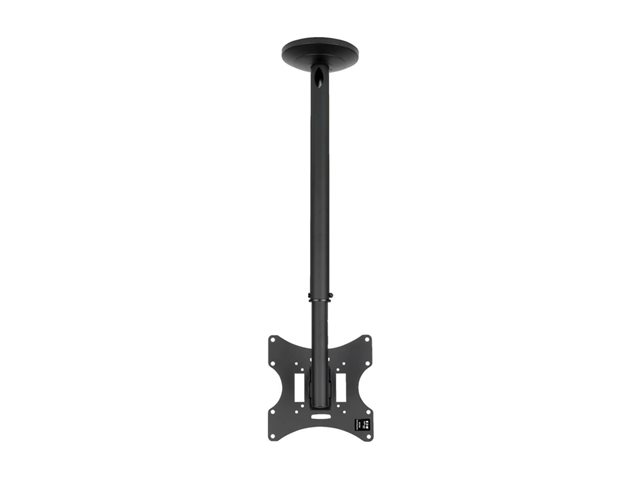

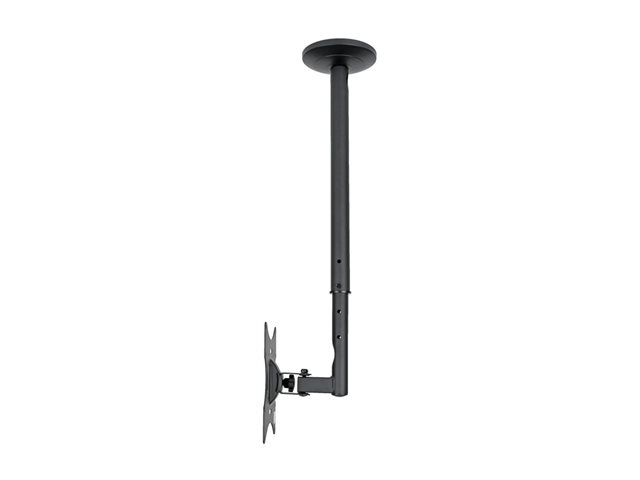

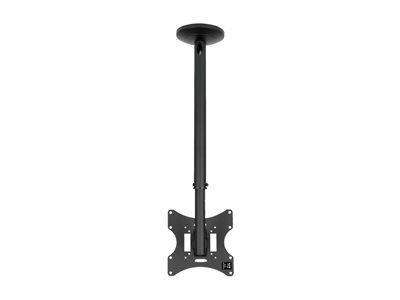

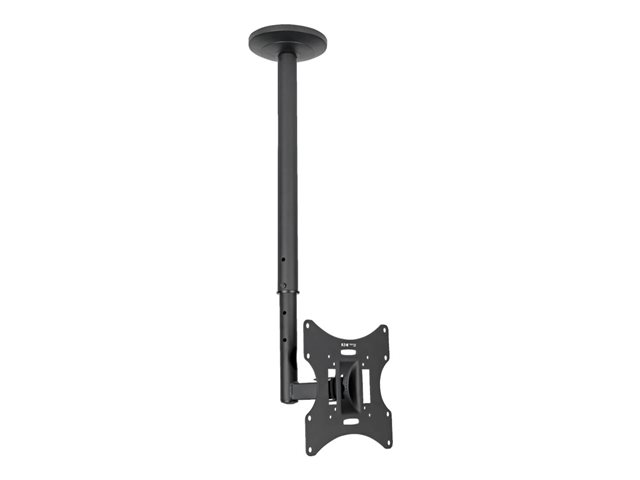

Eaton Tripp Lite Series Display TV Ceiling Monitor Mount Arm Swivel Tilt - Bracket - full-motion - for LCD display - steel - black - screen size: 23"-42" - ceiling mountable
Manufacturer: Eaton
Item Inso: 3602584
Sku: DCTM

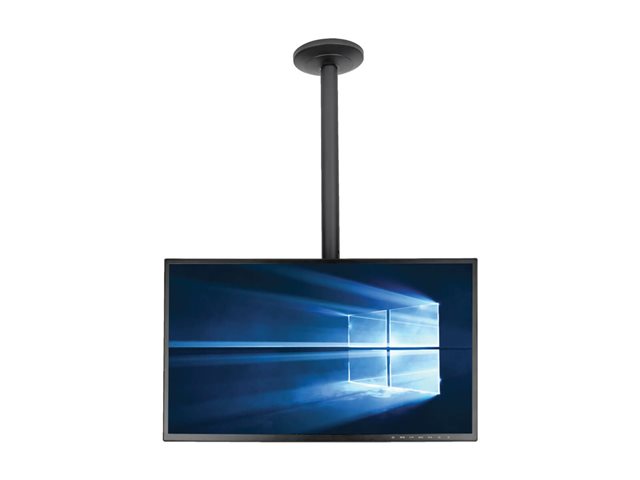

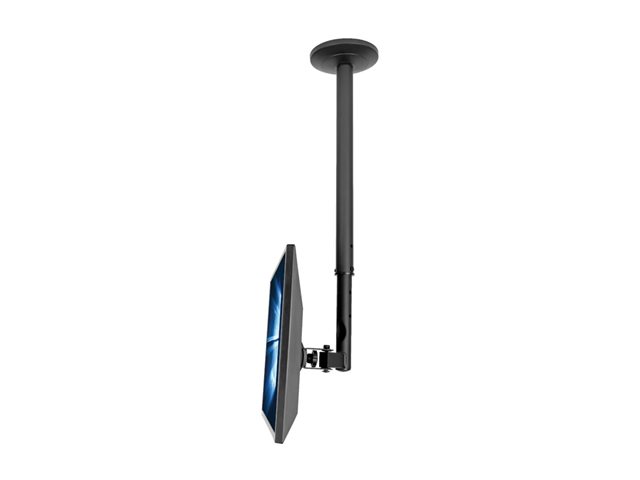

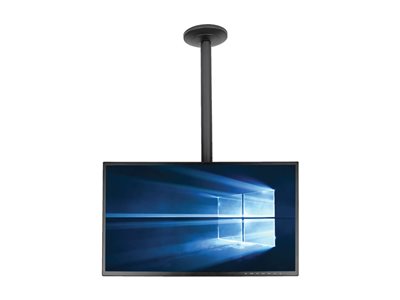

The DCTM Full Motion Ceiling Mount saves valuable wall and floor space by suspending your flat-panel television, monitor or other display from the ceiling. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 23 to 42 inches.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | Eaton Tripp Lite Series Display TV Ceiling Monitor Mount Arm Swivel Tilt bracket - full-motion - for LCD display - black |
| Product Type | Bracket (full-motion) - ceiling mountable |
| Dimensions (WxDxH) | 16.51 cm x 16.51 cm x 58.42 cm |
| Adjustable Height | 27.9-53.3 cm |
| Tilt | -20° to 0° |
| Swivel | 90° |
| Adjustments | Tilt, swivel |
| Weight | 2.5 kg |
| Recommended Use | LCD display |
| Recommended Display Size | 23"-42" |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 100 x 200 mm |
| Max Load Weight | 29.94 kg |
| Material | Steel |
| Color | Black |
| Manufacturer Warranty | 5-year warranty |

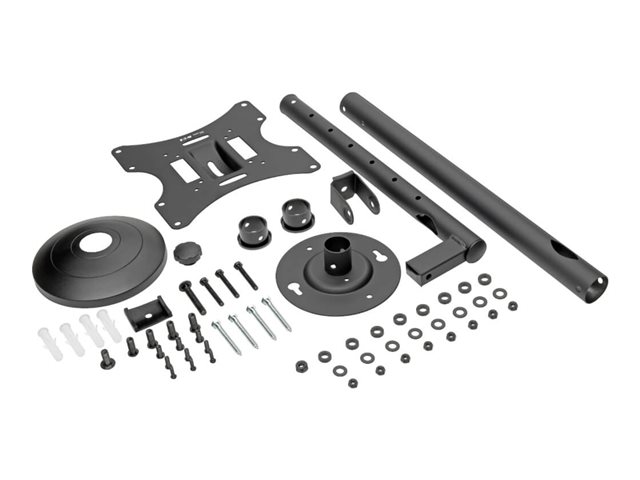

Items included in the box :
| Bracket on mounting pole |
| Mounting plate |
| (4) M4 x 12 mm screws |
| (4) M4 x 20 mm screws |
| (4) Screws |
| (4) Anchors |
| (4) 27 mm x 7.6 mm washers |
| (4) M6 x 12 mm screws |
| (4) M6 x 20 mm screws |
| (4) M5 x 12 mm screws |
| (4) M5 nuts |
| (4) 16 mm x 5.3 mm washers |
| (4) Big spacers |
| (4) M6 lock washers |
| (4) M4 lock washers |
| Hex key |
| Owner's manual |
