The Aruba 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks. This advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40GbE, robust QoS and security and requires no software licensing. The 5400R is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

As this text is supplied by the manufacturer, we have no control over its language.

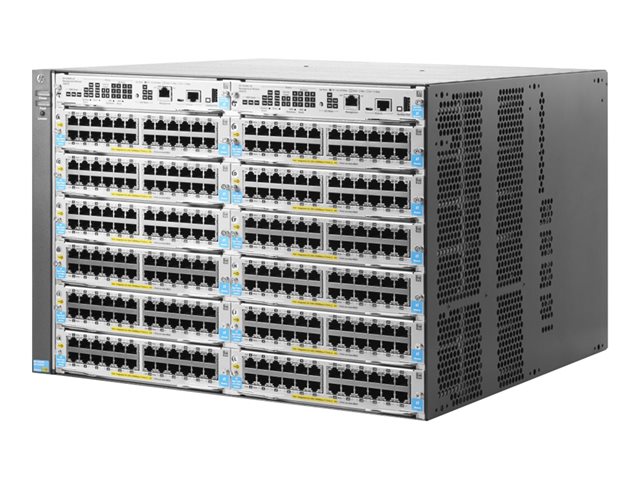

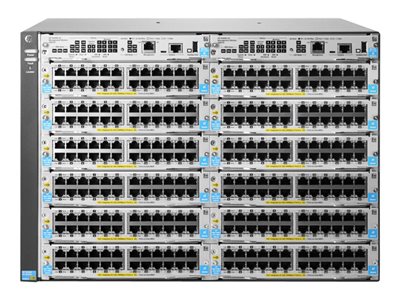

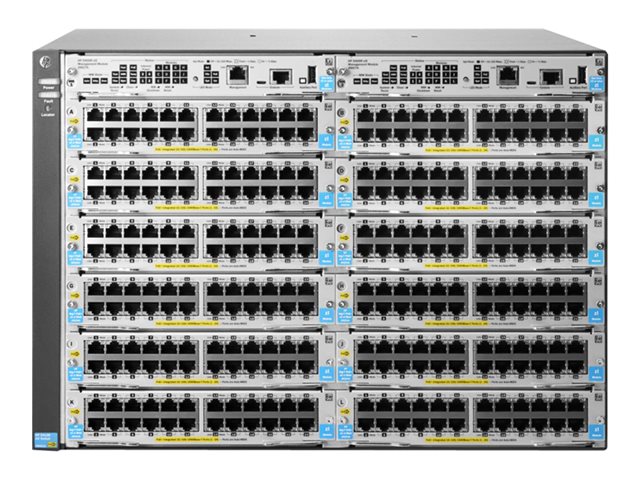

Product Description	HPE Aruba 5412R zl2 - switch - managed - rack-mountable
Device Type	Switch - managed
Enclosure Type	Rack-mountable 7U
Subtype	Gigabit Ethernet
Performance	Throughput: 785.7 Mpps ¦ Routing/switching capacity: 1 Tbps
Capacity	IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size	64K entries
Routing Protocol	OSPF, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD, CIDR
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, SSH, CLI, XRMON
Features	Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

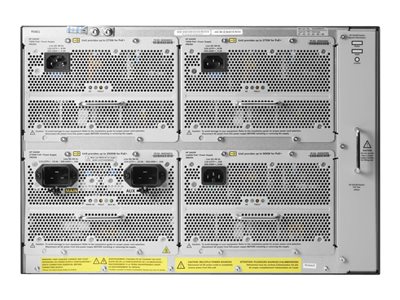

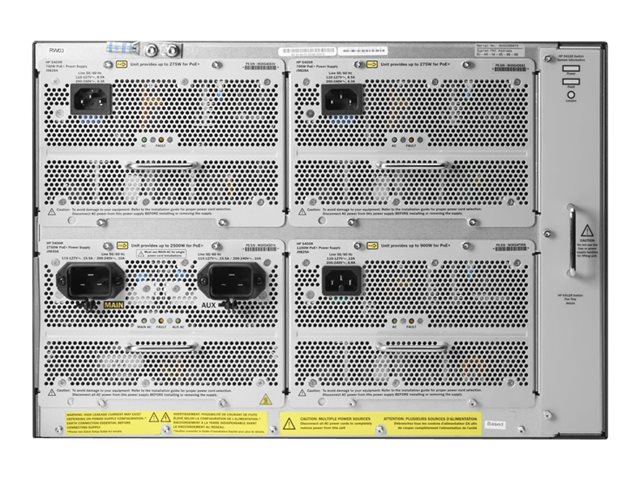

Power	AC 120/230 V (50/60 Hz) - power supply not installed
Power Redundancy	Optional
Dimensions (WxDxH)	44.45 cm x 45.09 cm x 30.73 cm
Weight	17.28 kg
Manufacturer Warranty	Limited lifetime warranty

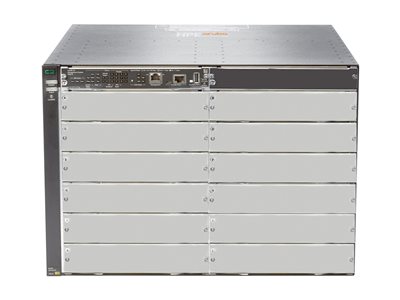

Items included in the box :

(1) Aruba 5412R zl2 Switch, (1) Aruba 5400R zl2 Management Module (J9827A), (1) Aruba 5412R zl2 Switch Fan Tray (J9832A)
