Description
Eaton Tripp Lite Series PDU Single Phase Basic Horizontal 200/240V 5.8kw 16 C13 4 C19 - Horizontal rackmount - power distribution unit (rack-mountable) - 30 A - AC 208 V - 5.8 kW - input: NEMA L6-30 - output connectors: 20 (power IEC 60320 C13, IEC 60320 C19) - 1U - 19"
Manufacturer: Eaton
Item Inso: 367988
Sku: PDU1230

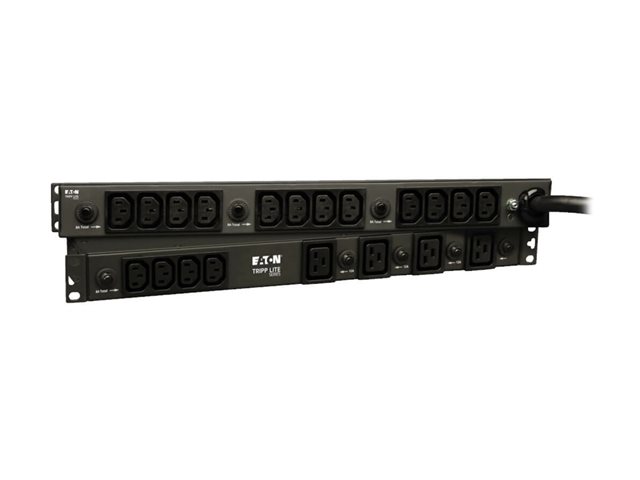

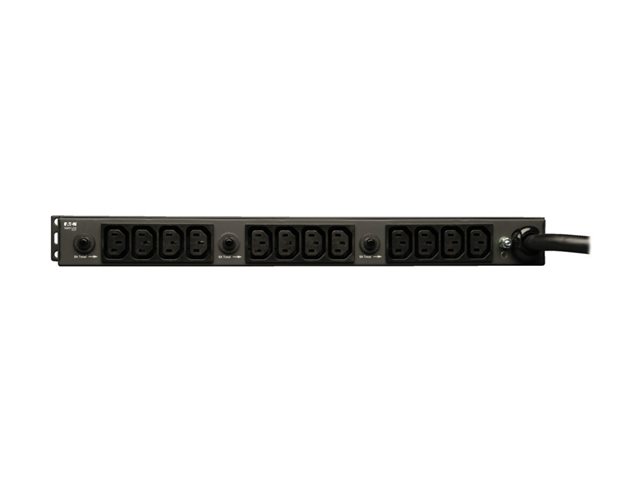

The PDU1230 4.8/5.8kW Single-Phase 200-240V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1230 features 20 total outlets - 12 rear C13, four front C13 and four front C19. The NEMA L6-30P input plug with long 15-ft. (4.57 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | Eaton Tripp Lite Series PDU Single Phase Basic Horizontal 200/240V 5.8kw 16 C13 4 C19 - horizontal rackmount - power distribution unit - 5.8 kW |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 19" - 1U |
| Weight | 2.4 kg |
| Input Voltage | AC 208 V |
| Power Capacity | 5.8 kW |
| Input Connectors | Power NEMA L6-30 |
| Output connectors | 16 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 |
| Dimensions (WxDxH) | 50.8 cm x 11.4 cm x 4.5 cm |
| Manufacturer Warranty | 5-year warranty |
Items included in the box :
| PDU1230 4.8/5.8kW Single-Phase 200/208/240V Basic PDU |
| Mounting hardware |
| Owner’s manual |
