- Eaton 9PX 9PX5KTF5 (9PX5KTF5)
Delivery
Warranty
Description

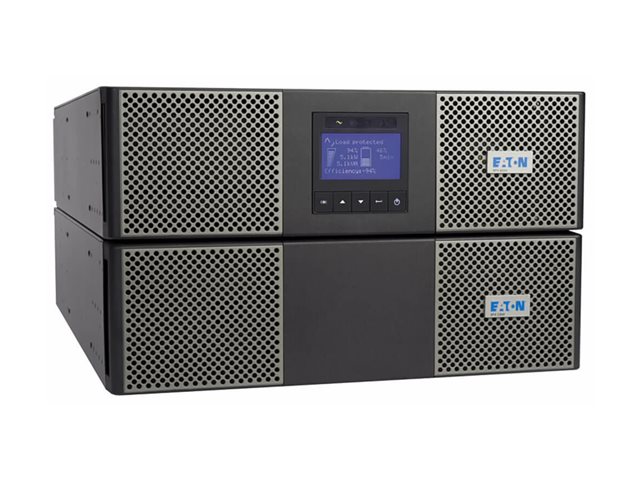

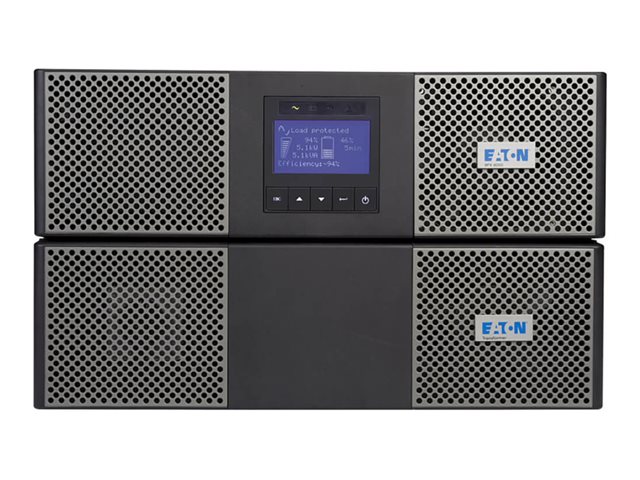

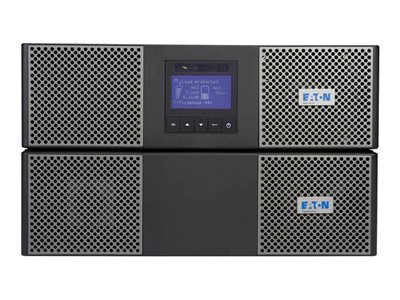

Eaton 9PX 9PX5KTF5 - UPS - AC 200/208/220/230/240 V - 4.5 kW - 5000 VA - Ethernet 10/100, RS-232, USB - PFC - 6U - 19" - black, silver - with 5 kVA Transformer
Manufacturer: Eaton
Item Inso: 3743782
Sku: 9PX5KTF5

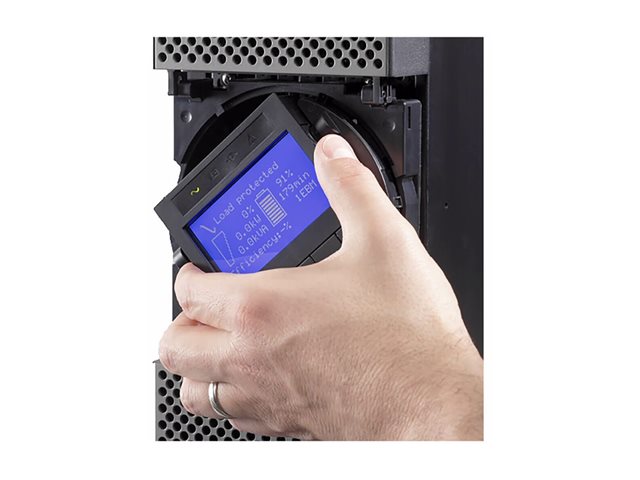

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With an advanced LCD screen interface and robust power management software, managing a UPS has never been easier with the 9PX - even in virtualized environments.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | Eaton 9PX 9PX5KTF5 - UPS - 4.5 kW - 5000 VA - with 5 kVA Transformer |
| Device Type | UPS - Power Factor Correction (PFC) - external |
| Rack Size | 19" - 6U |
| Weight | 91.2 kg |
| Input Voltage | AC 200/208/220/230/240 V |
| Output Voltage | AC 120/208 V |
| Power Capacity | 4.5 kW / 5000 VA |
| Input Connectors | Power NEMA L6-30 |
| Output connectors | 1 x power NEMA L6-30 ¦ 18 x power NEMA 5-20 ¦ 2 x power NEMA L6-20 ¦ 1 x hardwire |
| Battery | Expandable |
| Run Time (Up To) | 13 min at half load |
| Networking | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI |
| Color | Black, silver |
| System Requirements | Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008 |
| Dimensions (WxDxH) | 43.9 cm x 72.1 cm x 25.9 cm |
| Manufacturer Warranty | 2-year warranty |
| Bundled with | 5 kVA Transformer |
