- Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 28 Outlet L5-20P Vertical 0URM (PDUMV20)
Delivery
Warranty
Category best-sellers
Description

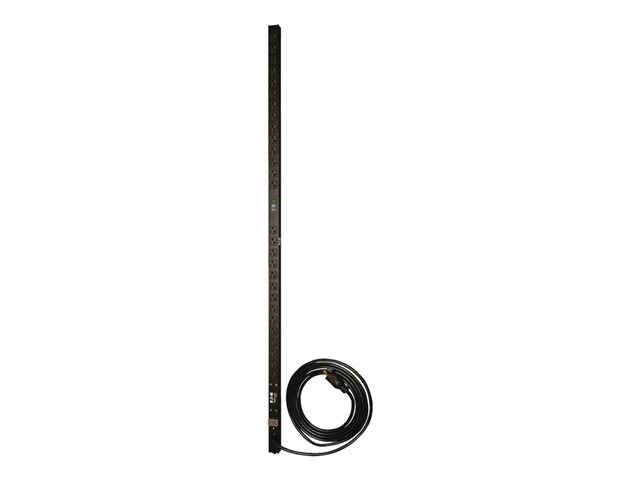

Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 28 Outlet L5-20P Vertical 0URM - Vertical rackmount - power distribution unit (rack-mountable) - 20 A - AC 120 V - 1.9 kW - 2400 VA - input: NEMA L5-20 - output connectors: 28 (NEMA 5-15/20) - 0U - silver
Manufacturer: Eaton
Item Inso: 406293
Sku: PDUMV20

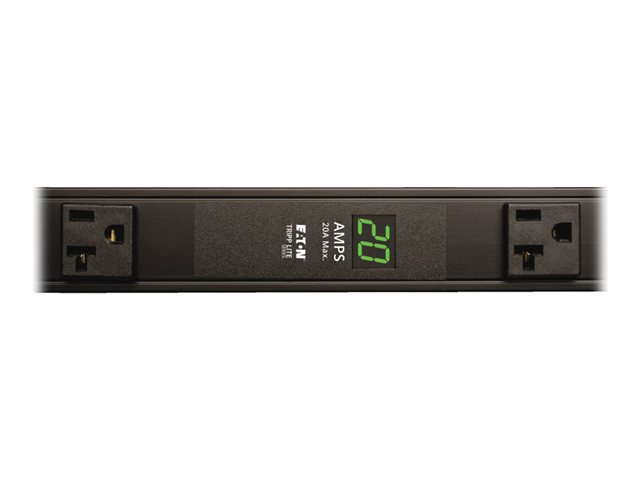

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
As this text is supplied by the manufacturer, we have no control over its language.
| Product Description | Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 28 Outlet L5-20P Vertical 0URM - vertical rackmount - power distribution unit - 1.9 kW - 2400 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Weight | 2.4 kg |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 1.9 kW / 2400 VA |

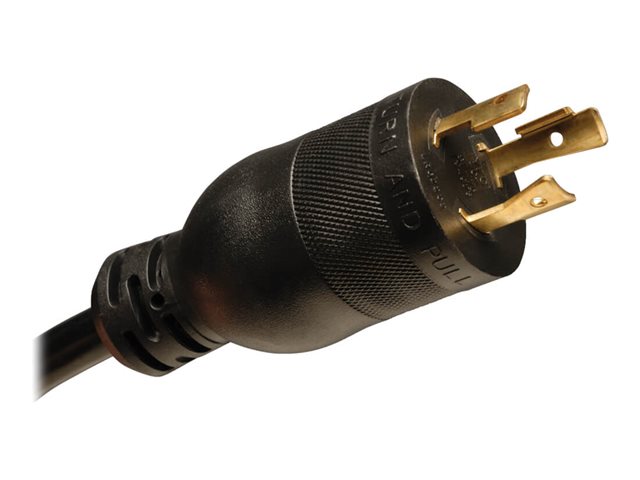

| Input Connectors | 1 x power NEMA L5-20 |
| Output connectors | 28 x power NEMA 5-15/20 |
| Color | Silver |
| Dimensions (WxDxH) | 152 cm x 3.2 cm x 4.4 cm |
| Manufacturer Warranty | 2-year warranty |

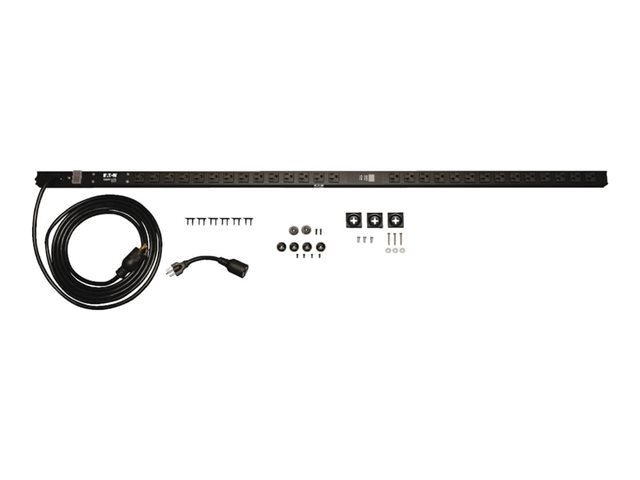

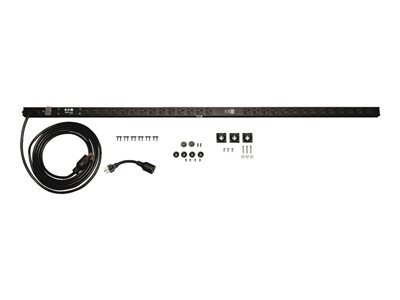

Items included in the box :
| PDUMV20 Metered Vertical PDU |
| (1) L5-20P to 5-20P plug adapter |
| Mounting hardware and spare mounting buttons |
| Instruction manual with warranty information |
