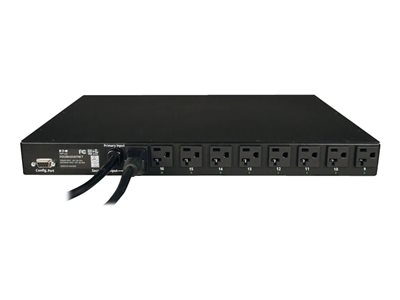

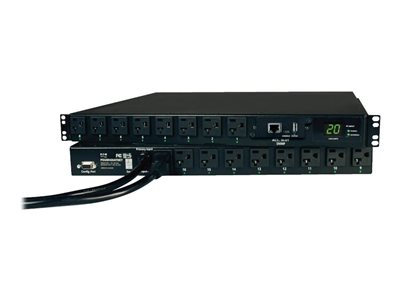

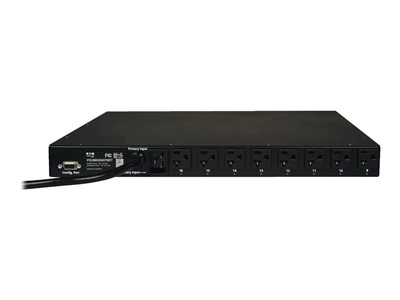

Tripp Lite PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal TAA


Tripp Lite PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal TAA - Horizontal rackmount - power distribution unit (rack-mountable) - 20 A - AC 120 V - 1.9 kW - 2400 VA - Ethernet 10/100 - output connectors: 16 (NEMA 5-15/20) - 1U - black - for SmartOnLine SU2200; SmartOnLine EZ-series SU16, SU20; SmartPro 3000, SM2200, SMART2200

Manufacturer: Tripp Lite
Item Inso: 406296

Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.

As this text is supplied by the manufacturer, we have no control over its language.

Product DescriptionTripp Lite PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal TAA - horizontal rackmount - power distribution unit - 1.9 kW - 2400 VA
Device TypePower distribution unit - rack-mountable
Rack Size1U
Weight5.5 kg
Input VoltageAC 120 V
Output VoltageAC 120 V
Power Capacity1.9 kW / 2400 VA
Input Connectors2 x power NEMA 5-20, power NEMA L5-20
Output connectors16 x power NEMA 5-15/20
NetworkingEthernet 10/100
Remote Management ProtocolSNMP, Telnet, HTTP
Dimensions (WxDxH)44.4 cm x 36.8 cm x 4.4 cm
Manufacturer Warranty2-year warranty
Designed ForSmartOnLine SU2200RTXL2Ua, SU2200XLa, SU2200XLCD, SU8000RT3U1TF, SU8000RT4U; SmartOnLine EZ-series SU16KRT-1TF, SU20KRT-1TF; SmartPro 3000RM2UN, SM2200RMDVTAA, SMART2200CRMXL, SMART2200RM2UN, SMART2200RMXLN

Items included in the box :

ATS / Switched PDU with attached L5-20P input power cord

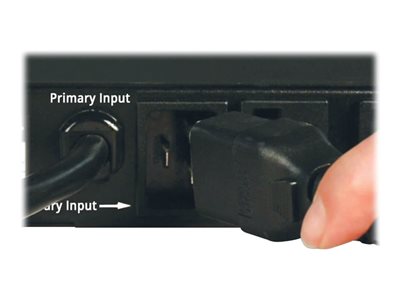

Detachable C19 to NEMA L5-20P 12 ft/3.6m secondary input cord
Two NEMA L5-20R to NEMA 5-20P plug adapters
Installable 1U mounting brackets
User manual with warranty information
