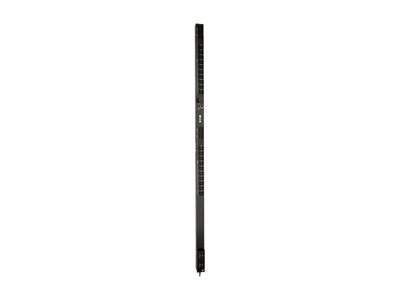

Tripp Lite 5/5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA - Power distribution unit (rack-mountable) - 30 A - AC 200/208/240 V - 5.8 kW - 1-phase - Ethernet 10/100 - input: NEMA L6-30 - output connectors: 24 (IEC 60320 C13, IEC 60320 C19) - 0U - 19" - 3.05 m - TAA Compliant
Manufacturer: Tripp Lite
Item Inso: 4670058
Sku: PDUMV30HVNETLX

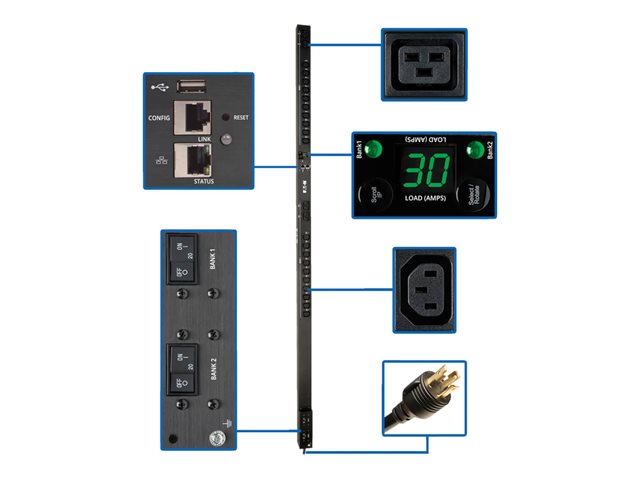

The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. LEDs indicate each outlet's on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
Product Description | Tripp Lite 5/5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA - power distribution unit - 5.8 kW - TAA Compliant |
Device Type | Power distribution unit - rack-mountable |
Cord Length | 3.05 m |

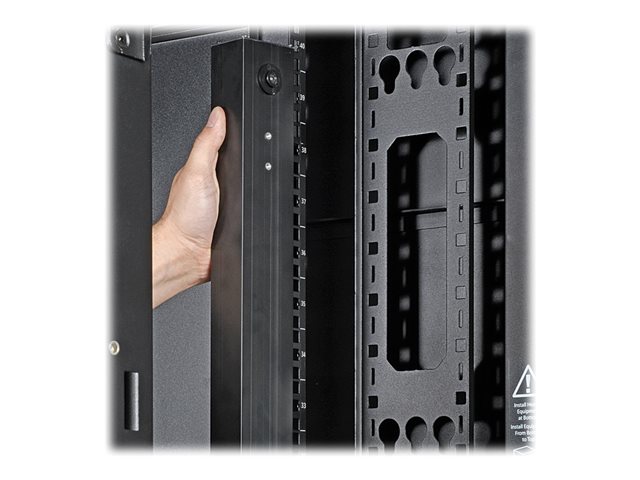

Rack Size | 19" - 0U |
Weight | 5.22 kg |
Input Wiring | 1-phase |
Input Voltage | AC 200/208/240 V |
Output Voltage | AC 208/240 V |
Power Capacity | 5.8 kW |
Input Connectors | 1 x power NEMA L6-30 |

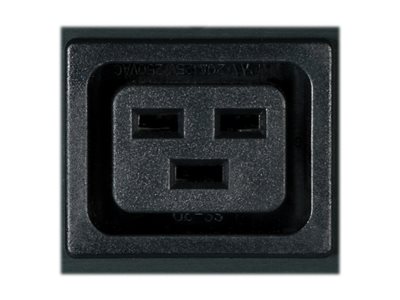

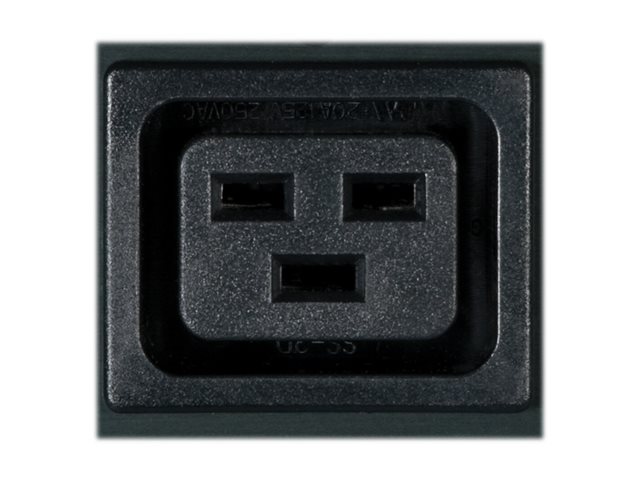

Output connectors | 20 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A |

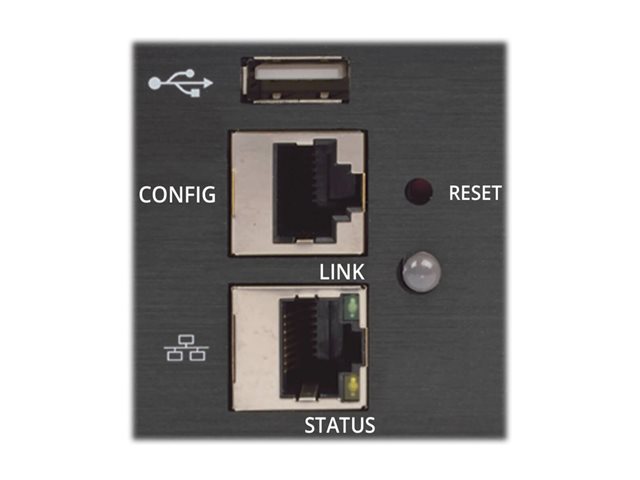

Networking | Ethernet 10/100 |
Remote Management Protocol | SNMP, Telnet, SSH |

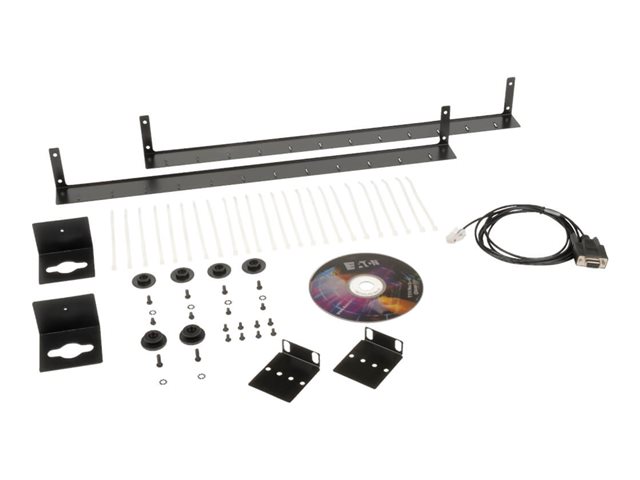

Included Accessories | Cable retention brackets, 24 cable ties |
TAA Compliant | TAA Compliant |
Dimensions (WxDxH) | 5.6 cm x 6.7 cm x 177.8 cm |
Manufacturer Warranty | 2-year warranty |
