HPE Aruba 6300F


Description

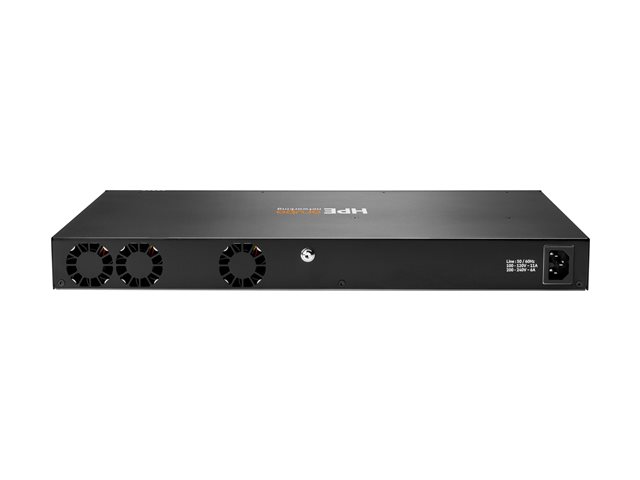

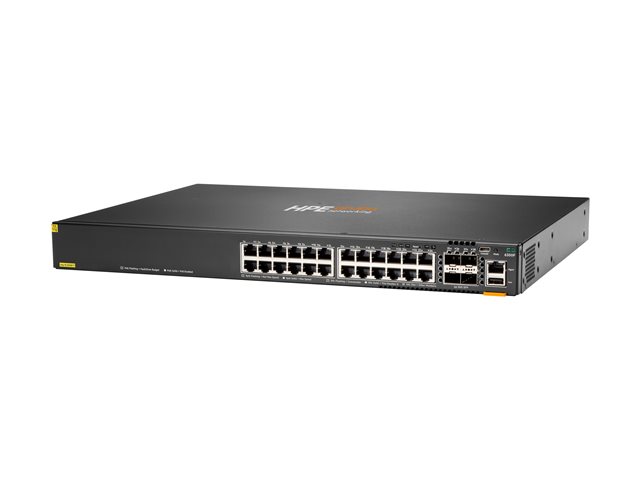

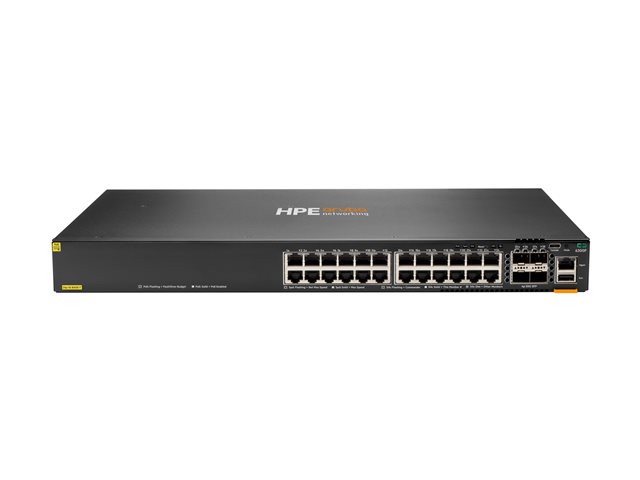

HPE Aruba 6300F - Switch - L3 - managed - 24 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56 - front to back airflow - rack-mountable - PoE+ - TAA Compliant



Manufacturer: Hewlett Packard Enterprise
Item Inso: 5567588
Sku: JL666A#ABA


La gamme de commutateurs Aruba CX 6300 est une gamme moderne, flexible et intelligente de commutateurs empilables AOS-CX, modernes, flexibles et intelligents idéale pour l'accès et l'agrégation d'entreprise. Grâce à une conception centrée sur le cloud qui associe un système d'exploitation entièrement programmable au moteur d'analyse de réseau Aruba, le système CX 6300 d'Aruba étend les capacités de surveillance et de dépannage de l'industrie à la couche d'accès.


As this text is supplied by the manufacturer, we have no control over its language.

Product DescriptionHPE Aruba 6300F - switch - 24 ports - managed - rack-mountable
Device TypeSwitch - 24 ports - L3 - managed - stackable
Enclosure TypeFront to back airflow rack-mountable 1U
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
Power Over Ethernet (PoE)PoE+
PerformanceSwitching capacity: 448 Gbps ¦ Switching throughput: 334 Mpps ¦ 1 Gbps average latency (64-byte packets): 2.28 µs ¦ 10 Gbps average latency (64-byte packets): 1.46 µs ¦ 25 Gbps average latency (64-byte packets): 1.9 µs ¦ 50 Gbps average latency (64-byte packets): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
CapacitySwitched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolOSPF, BGP-4, BGP, IGMP, OSPFv2, PIM-DM, IGMPv3, MSDP, MLDv2, MLD, CIDR
Remote Management ProtocolSNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, XRMON, SFTP
FeaturesDHCP support, BOOTP support, ARP support, VLAN support, Syslog support, port mirroring, DiffServ support, IPv6 support, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), LLDP support, fan tray, SNMP trap, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), tagged VLAN, 8MB packet buffer, 802.1x authentication, Type of Service (ToS), Bridge protocol data unit (BPDU), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Link Aggregation, Ethernet Virtual Private Network (EVPN), Network Timing Protocol (NTP), LLDP-MED, Denial of Service (DoS) protection, Rapid Reconfiguration of Spanning Tree (RSTP), Cisco Discovery Protocol (CDP), Bootstrap Router (BSR) Mechanism
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3cc, ITU-T Y.1344, IEEE 802.3cd
PowerAC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH)44.2 cm x 32.7 cm x 4.39 cm
Weight4.95 kg
LocalizationEnglish / United States
Manufacturer WarrantyLimited lifetime warranty
