Les points d'accès intérieurs HPE Networking Instant On AP22 offrent un accès Wi-Fi 802.11ax abordable et de qualité professionnelle pour les environnements de petites entreprises hautes performances et haute densité. Les fonctionnalités de qualité professionnelle sont conçues pour répondre aux besoins grandissants en matière de mobilité, d'IoT et de sécurité. Le format compact des points d'accès (PA) intérieurs HPE Networking Instant On AP22 offre des fonctionnalités multi-utilisateurs et un taux de pointe d'agrégation des données maximal de 1,2 Gbit/s pour les besoins du streaming vidéo haute définition et des applications cloud. Tout est inclus, du matériel de montage au Web facile d'utilisation, en passant par les outils de gestion des applications mobiles et les fonctionnalités logicielles de qualité professionnelle - ni frais supplémentaires, ni contrôles externes ne sont requis.

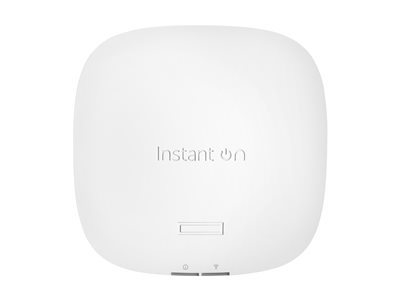

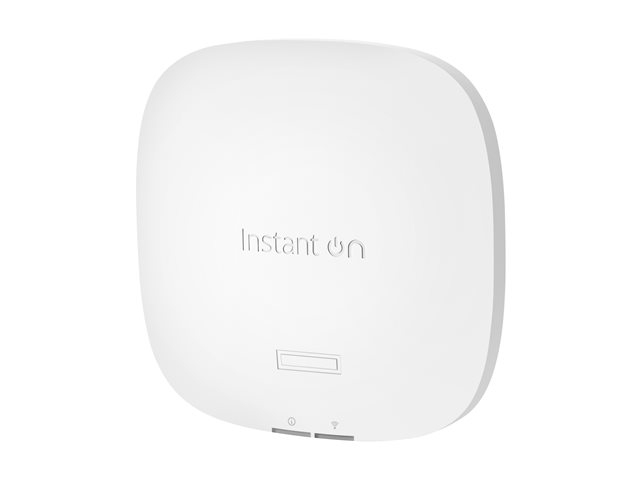

HPE Networking Instant On Indoor Access Point 2x2 Wi-Fi 6 (RW) AP22

HPE Networking Instant On Access Points AP22 delivers affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs. The compact form factor of the AP22 delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included; no extra charge or need for external controllers.

Wi-Fi 6 for high performance and efficiency

Supports up to 75 associated clients

Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access

Incredible Efficiency with Wi-Fi 6

• HPE Networking Instant On Access Points AP22 includes an easy-to-use web GUI and templates; access points are simple to deploy and are up and running in minutes.
• HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
• HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.

Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage

• HPE Networking Instant On Access Points AP22 have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.
• Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.

Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open

• HPE Networking Instant On Access Points AP22 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
• HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
• Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
• Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.

Creates a Custom Guest Access Experience

• HPE Networking Instant On Access Points AP22 are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.
• Simple to build landing page allows customization of your guest access page with your own brand and logo.
• Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.

Specifications

TechnicalSpecifications

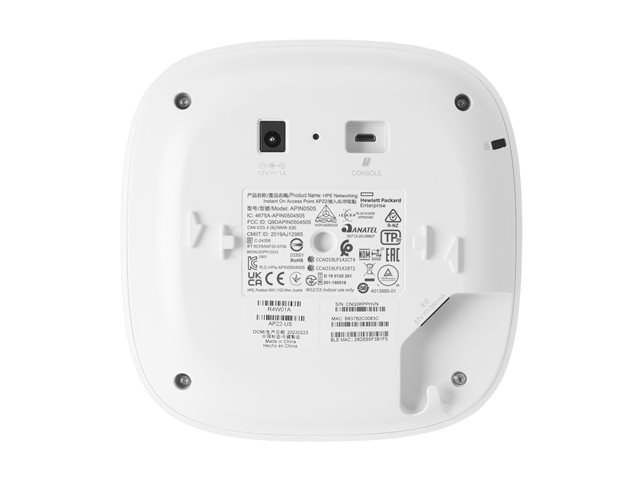

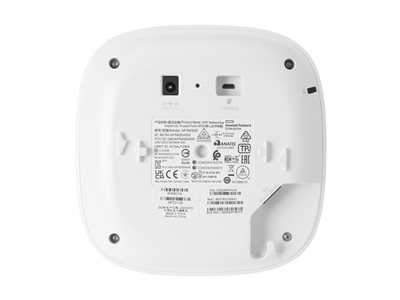

Ports	1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.

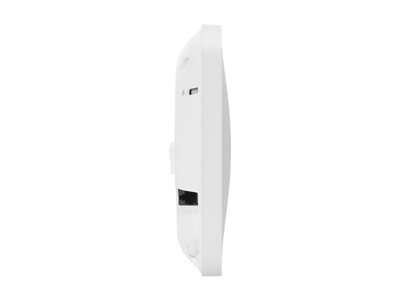

Mounting	Ceiling/Wall-mount clip
Connectivity, standard	Ultra-fast 802.11ax
Input voltage	Power over Ethernet (PoE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU
Power consumption	Max power consumption: 10.1W (PoE), 8.8W (DC)
Certifications	Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Wi-Fi antenna	Antennas: Down-tilt Dual Omni-directional 2x2 MIMO Antenna Gain: 4.9 dBi in 2.4 GHz 5.7 dBi in. 5 GHz Maximum transmit power: 5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
Radio coverage	Dual-radio 802.11ax 2x2 5 GHz/2.4 GHz MIMO
Product dimensions (metric)	37x 160 x 160 mm
Weight	500 g

Documents

HPE Networking Instant On Wi-Fi 6 Access Points QuickSpecs (English)

HPE Networking Instant On Access Points AP22 (English)
